Pneumatic working platform is used for working in heights. It consists of two columns fixed into the floor with four anchor bolt. The platform is hung on two pneumatic cylinders and moves in sliding leadings on the columns. The platform is controlled by foot lever. It is equipped with banister and on the floor is antiskid grid. The whole platform is stainless steel, except pneumatic elements.

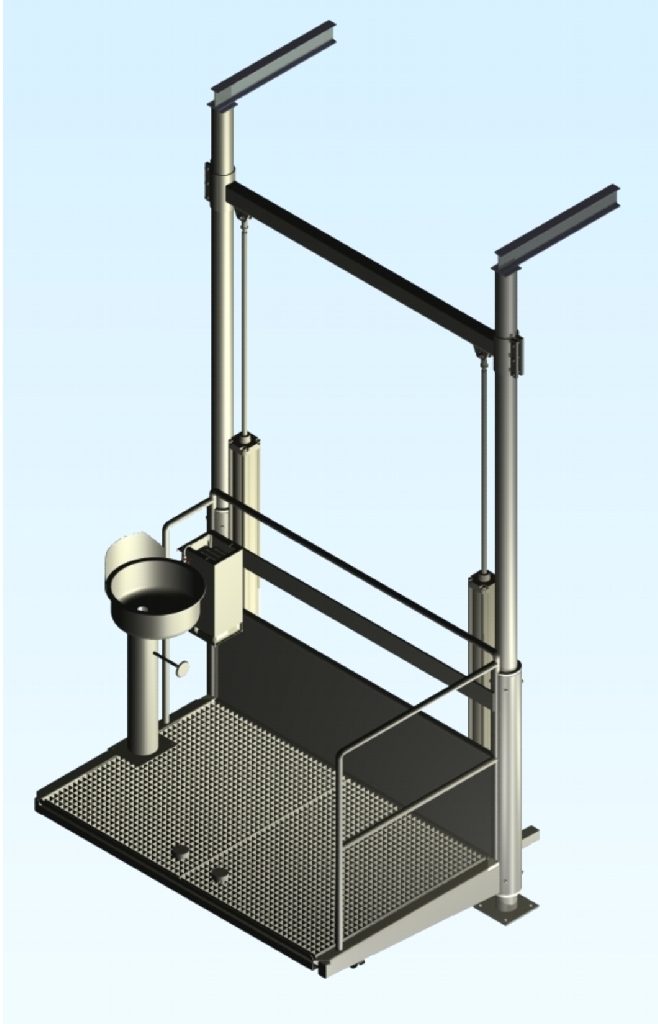

The platform can be delivered incl. washbasin and knife sterilizer (see the drawing).
Lift | 1200 mm (max. 2000 mm) |
Width | 1000 – 1800 mm |
Maximum load (1 person) | 150 kg |
Operating | pneumatic |
Lifting speed | 0,25 m/s |
