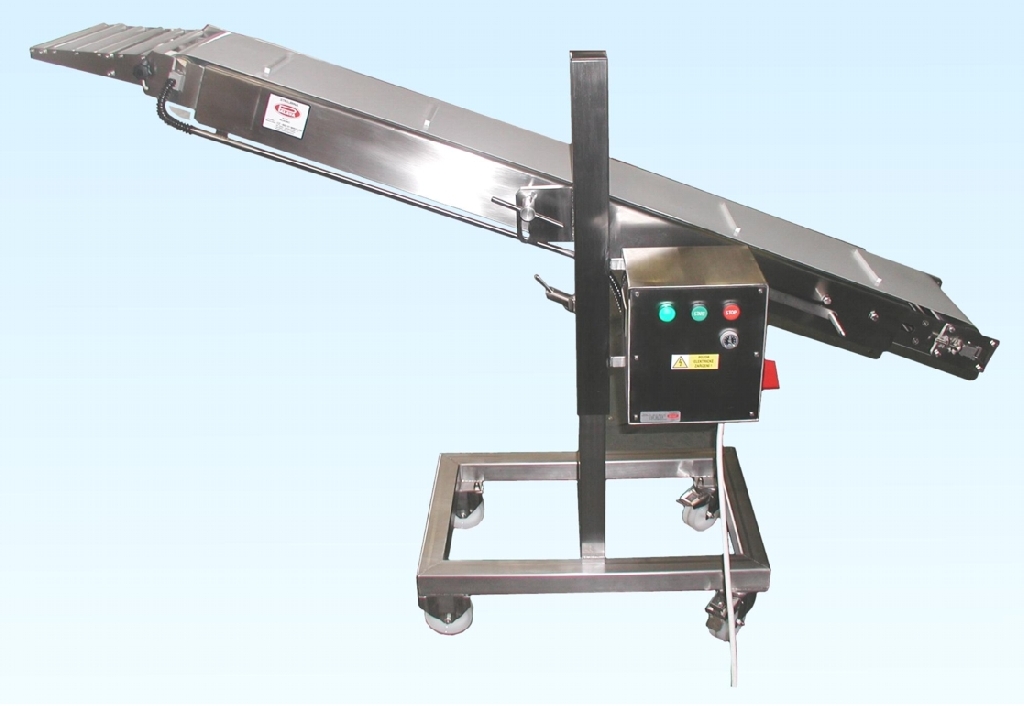

Mobile conveyer

The belt mobile conveyer is used for transporting of various products, mainly food industry products from one processing step to the next one.



The conveyer is constructed as mobile with the possibility of vertical and angular adjustment. For easy manipulation, the conveyer is fitted with wheels with arrest possibility. The gear of conveyer is supplied from electric box with speed switch regulation. On the end of conveyer there is a small gravity conveyer provide for easy passing of articles between the belt mobile conveyer and the next device. The conveyer belt is possible to unfix the shift of reverse bow by lever mechanism, which makes possible easy cleaning.



The whole conveyer is made of stainless steel; the conveyer belt is made of suitable material and can come in contact with food. The electric installation complies with the regulation ESČ-ČSN. The machine is supplied for tension of 400/230 V, 50 Hz.
Circuitry must be done according to current connection diagrams.

Length 1850 mm
Width 450 mm
Height 1230 mm
Operation manual
Belt’s load 3 kg / m
Belt’s width 250 mm
Bar’s distance on the belt 300 mm
